V shape leave spring flat spring

• Place of Origin:CN;GUA
• Brand Name:Hershey
• Style:Flat;Leaf;Plate
• Material:Stainless Steel
• Usage:Industrial
• Load Type:Compression
• Model Number:HES-CFS-140801
• service life:1000~10000 cycles flat srping
• material:stainless steel,carbon steel,alloy,etc
• magnetic:optional
• thickness:0.08~0.7mm of leave spring
• width:2~80mm
• length:up to request
• load force:0.2~20lbs flat spring
• Rust proof:Yes

Constant force spring/flat spring/coil spring /rolling spring

A constant-force spring is a spring for which the force it exerts over its range of motion is a constant. Generally constant-force springs are constructed as a rolled ribbon of spring steel such that the spring is relaxed when it is fully rolled up. As it is unrolled, the restoring force comes primarily from the portion of the ribbon near the roll.

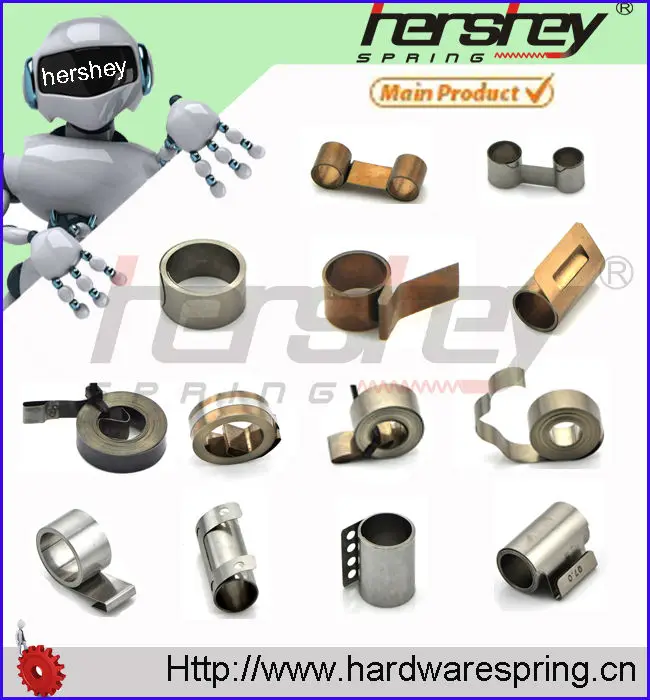

Hershey Spring Main Product
Hershey Spring
Product Name	V shape leave spring flat spring	Supply Ability	900000000PCS
Wire diameter	0.08mm~10.0mm	Type of shipping	By sea/air/DHL/Fedex/UPS etc
Quality certification	ISO9001:2008.SGS,the French BV authentications	Payment term	L/C,T/T,D/A,D/P,Western union,Money Gram,Paypal
The scale of Hershey spring	About 6000 suqare meters	Employee numbers	About 100.and our group are becoming larger
Industry Experience	Over 21 years' experience in the spring industry.

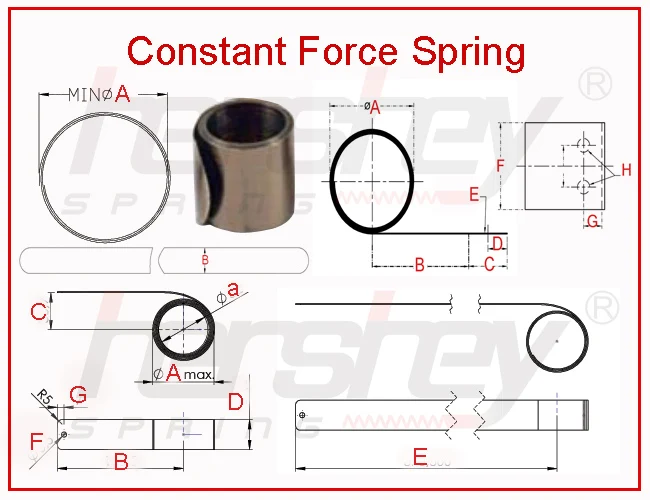

Hershey Constant Force Spring Drawing

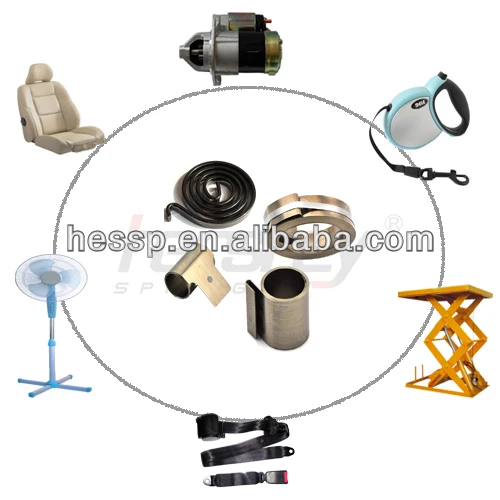

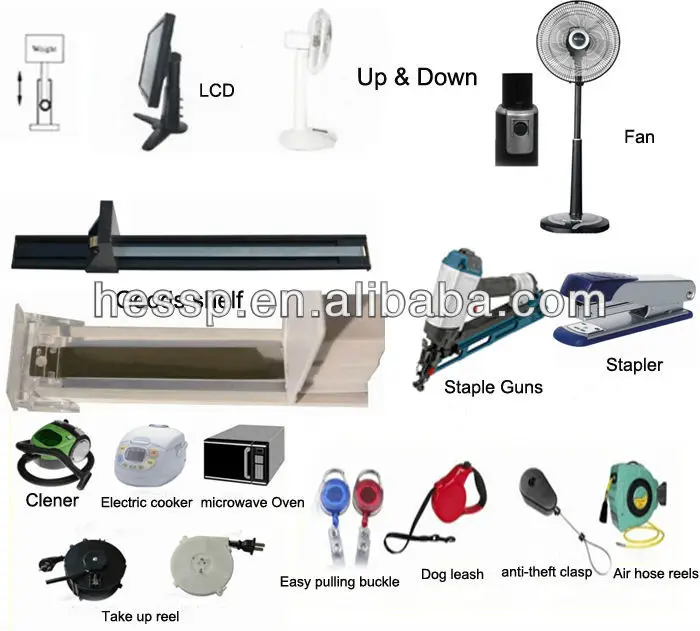

Hershey Constant Force Spring Application
electronics, electrical appliances, toys, locks, stationery, baby carriage, bicycle, gifts, crafts, kitchen appliances, cameras, printers, office equipment, precision equipment and various types of transportation……
Hershey Spring Material
Material Type Model Characteristic Application Stainless steel (sus) with or without magnetism, shine or nitrided surface, resin surface, dark surface 201, 202 etc anti-acid, anti-alkaili crafts, watches, etc 301, 302, 303, 304, 305, 309, 310, 316, 321 etc anti-rust, anti-corrosion  anti-acid, anti-alkaili electronic parts, electronic appliance, home appliance, locks, toys,etc 410, 420, 430 etc high strength tableware 630, 631 etc high thermostability products used under high temperature condition Carbon steel (swc) low carbon steel, high carbon steel, manganese steel, nickel plated steel, zinc plated steel 60SizMNA, 60SizCRVA, 55CrSi high hardness, high elastic machine parts, electronic parts, electronic appliance, home appliance, locks, toys, vehicles, etc Music wire (swp)   SWP-B, SWP-A high tensile strength, long working life widely used for small springs Copper phosphor copper,tin plated copper, nickel plated copper wire, bronze, beryllium copper   high conductivity performance electronic parts, electronic appliance, antennas, etc Iron galvanized iron   soft craft springs, decorations, etc
Hershey Spring Surface Treatment
Electroplate: nickel,zinc, gold, silver, copper...(*ROHS and REACH standard) Electrophoresis: all kinds of colors, springs can pass 8 to 48 hours Salt Spray Test (*ROHS and REACH standard) Dacroment,teflon: suitable for long hours outdoor usage ,can pass 90 hours Salt Spray Test (*ROHS and REACH standard)
Hershey Spring Production Process
Hershey Spring Packaging Process
Hershey Spring Order Process
Hershey Spring Customer Feedback
Why Choose Hershey Spring?
Hershey Spring Cooperation Customer
For more details. Contact me now~~
